2.0.3 UFA demo ZiptieAI 2D
(ZAI = ziptieai). This ZAI demo shows the correct way to detect regions. ROUGH DRAFT.
NOTE: Wiki page Core-AI-concepts (detector example) shows the original usage of this demo.. as a “logic gate” (XOR) h layer detector (should maybe add to this page sometime).
TOC
- 1b.1 2x / 2h / inverted trough detector.
The red inverted trough (z00_h1h2.png)
- 1b.2 2x / 3h / inverted (triangular) pothole detector.
The red circle (triangular inverted pothole) (z01_h1h2h3.png)
- 1b.3 the proper next step in this demo
- 1b.4 CORE CONCEPT SUMMARY
1b.1 2x / 2h / inverted trough detector
- 2 inputs x1, x2, consider them to be 2D dimensions.
- we want to detect a 2 sided area in 2D.
- 2S = 2 sides = has 2 h’s.
- in this demo the sides are parallel and space between them, so its a trough.
- it would be a an infinite pie piece if the lines were not parallel.
My demo is quite simple. it was originally to show how to create an XOR function. https://github.com/terrytaylorbonn/auxdrone/wiki/Core-AI-concepts

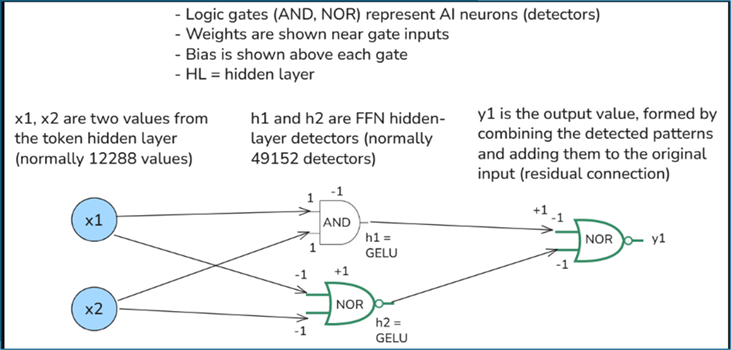

=1 (need to adjust h1, h2 W’s) (z02_logic_gates_need_fix.png)
=2 in h layer neuron 1
- these 2 inputs are multiplied by weights.
- this is the slope of the plane defined by the 2 inputs.
-
this plane goes through the origin. (z03_2_inputs_origin.png)
- they are added.
- this creates a plane
- then a bias is added to their sum.
- the bias effectively moves the plane away from the origin (z04_bias.png)
=2b GELU applied // GELU diagram 3
- GELU is applied to their biased sum.
- the line is actually created in the x1 x2 plane when
- on one side of line, its a flat plane in x1 x2 plane.
- on other side its a plane going up (UP ONLY). (z05_gelu.png)
=3 in hlayer neuron 2
- do the same, but tweak the W/bias values a bit so that there is a “trough” between where h1 is not 0 and h2 is not 0 ( this trough will be inverted and biases up in y.
- so where the trough is is the only region where x1 x2 values give a >0 probability.) (z06_shift_2d_line.png)
=4 h layer result (NEED TO MODIFY W,bias slightly to create trough… right now its a line)

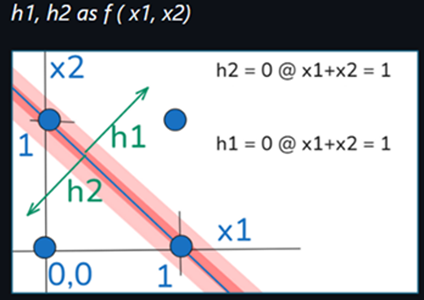

- h1, h2 <=0 (z00_h1h2.png)
=5 in y layer
- in the y1 neuron, each h plane is multiplied by NEGATIVE weight.
- this inverts the planes.
- then +bias to raise what was the “trough” above 0 (its now the only part about 0)
- the resulting inverted trough represents the probability of y1 detected.
- NO GELU required…. because negative probabilities are ignored.
- h1/h2 were GELU’d so they are >=0

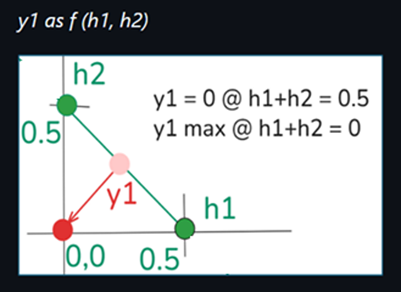

- y max occurs in the middel of the inverted trough. (z07_y1_h1h2.png)
1b.2 2x / 3h / inverted (triangular) pothole detector
- 2 inputs x1, x2, consider them to be 2D dimensions.
- we want to detect a 3 sided area in 2D (assume not all 3 are parallel).
- 3S = 3 sides = has 3 h’s, so its location is defined by a triangle.

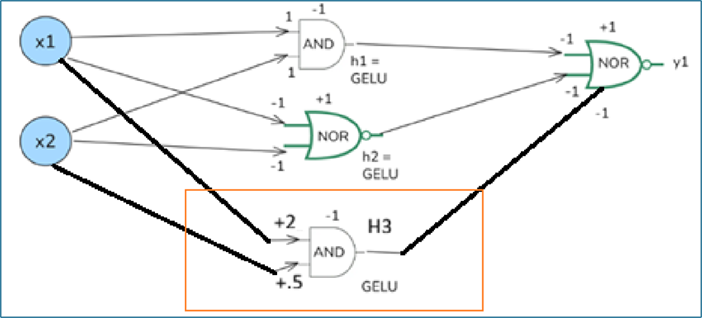

-1 ADD h3 to this diagram (need to adjust h1, h2 W’s) (z08_3h_gates.png)
-2 in y the detection area is now a ~ pothole (in red circle below (approx)) will be above 0. (z01_h1h2h3.png)
1b.3 the proper next step in this demo
- if we add anohter h layer (hL2) , then y outputs would be some higher level features that are defined by various features in hL1.
- hte problem is, as more layers are added, the conceptual complexity gets big quick.
- SEE SECTION 4 CNN (CNN, not TF) (MULTILAYER UFA) for how multi layers are used.
1b.4 CORE CONCEPT SUMMARY
- 1) THIS IS WHY GPUS AND NNs, BECAUSE (1) LOWER LAYER FEATURES ADD TO UPPER LAYER, (2) SUPER FAST COMPUTATION (NO LOOPS), ETC.
- 2) what defines the layers arise out of hte training data naturally. but we dont understaand what they are, because they are all numbers. all we see are encodings.
- 3) we give the TF numbers (that represent tokens) and TF spits out numbers (that represent the next token).
- 4) For hte TF is just number crunching, matching patterns. NO INTELLIGENCE, NO CONSICIOUSNESS OF WHAT IS GOING ON.
26.0513 (v1 26.0513)
