3.3.4 pal_core_04 graph
[3.3.4] pal_core_04 (BINGO) 26.0412 (04 graph / relationships) (see summary)
pal_core_04 shows how human language can add new runtime relationship semantics to a structured graph system without rewriting the core code.
1. Human language defines a new machine-usable relationship: Exactly.
The human says something like:
Treat all suppliers owned by same parent company as related.
The LLM converts that into a structured semantic rule:
{
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "related_to"
}
That is the key move.
________________________________________
2. No Python rewrite needed: Also correct.
The deterministic Python code was already built to:
• accept a rule
• derive edges from that rule
• use those edges in graph traversal
So the LLM is not rewriting logic code.
It is supplying a new runtime instruction that the existing logic can use.
Your word patch is good.
More precisely:
natural-language runtime semantic patch
That is a very important capability.
________________________________________
3. The relationships could become much more complex: Yes — absolutely.
The example you used is simple:
same parent company -> related_to
But in principle, rules could become much richer.
Examples:
• suppliers serving the same site are related
• entities linked to the same incident are related
• assets with the same upstream dependency are related
• shipments delayed on the same route within 24 hours are related
• vendors owned by same parent and serving same region are related
That starts to become very powerful.
________________________________________

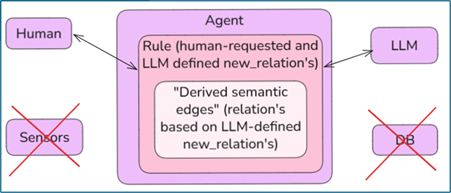

Important subtle point: The LLM did not directly build the edges.
It defined the rule.
Then deterministic Python used the rule to build the derived semantic edges.
So the architecture is:
human meaning
-> LLM structures meaning
-> deterministic system applies meaning
-> graph behavior changes
That separation is why the demo is so good.
________________________________________
Why this matters so much
Because it means:
humans can adapt system behavior quickly
no code edit is required
no schema redesign is required
the core deterministic engine remains intact
the semantics of analysis can shift at runtime
That is a major concept.
________________________________________
Best one-line summary
pal_core_04 shows how human language can add new runtime relationship semantics to a structured graph system without rewriting the core code.
#584 can you give me another example (besides "related_to") for that demo? what would be the
(1) semantic rules and the resulting
(2) semantic edges (these are basically LLM defined from-to relations?)
Yes — exactly. In that demo, the semantic rules define new relationship types that the deterministic system can instantiate as graph edges.
You can think of them as:
LLM-defined relationship logic
Then Python turns that into concrete:
from -> relation -> to
edges.
Example 1 — backup_for
Human instruction
For this investigation, treat suppliers owned by the same parent company as backup suppliers for each other.
________________________________________
Semantic rule
{
"name": "same_parent_suppliers_are_backups",
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "backup_for"
}
________________________________________
Derived semantic edges
supplier_1 -> backup_for -> supplier_2
supplier_2 -> backup_for -> supplier_1
________________________________________
Meaning
If supplier_1 fails, supplier_2 may be a substitute.
Very useful.
________________________________________
Example 2 — risk_linked_to
Human instruction
Treat suppliers with the same parent company as risk linked.
Rule
{
"name": "shared_parent_risk_link",
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "risk_linked_to"
}
Edges
supplier_1 -> risk_linked_to -> supplier_2
supplier_2 -> risk_linked_to -> supplier_1
________________________________________
Example 3 — coordination_needed_with
Human instruction
Treat suppliers under the same parent as requiring coordination.
Rule
{
"name": "shared_parent_coordination",
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "coordination_needed_with"
}
Edges
supplier_1 -> coordination_needed_with -> supplier_2
supplier_2 -> coordination_needed_with -> supplier_1
________________________________________
Important insight
The data facts did not change:
supplier_1 owned_by parent_1
supplier_2 owned_by parent_1
Only the interpretation layer changed.
________________________________________
Are these “LLM-defined from-to relations”?
Yes, with one refinement:
The LLM defines the rule for generating relations.
The deterministic engine generates the actual edges.
So:
LLM defines relation semantics
Python creates graph edges
________________________________________
Why this is powerful
Different investigations can choose different meanings:
• backup_for
• competitor_to
• risk_linked_to
• coordination_needed_with
• substitute_for
Same data, new analytical lens.
# pal_core_04_graph_semantic.py
#
# PAL Core 04 - Graph + Semantic Command
#
# Commands:
# 1) demo
# 2) status
# 3) reset
# 4) related <ENTITY_ID>
# 5) path <START_ID> <END_ID>
# 6) command "<natural language instruction>"
#
# Examples:
# python pal_core_04_graph_semantic.py demo
# python pal_core_04_graph_semantic.py status
# python pal_core_04_graph_semantic.py related supplier_1
# python pal_core_04_graph_semantic.py path supplier_1 site_1
# python pal_core_04_graph_semantic.py command "For this investigation, treat all suppliers owned by same parent company as related."
#
# Notes:
# - Structured ontology-like entities + relations
# - Deterministic graph traversal
# - OpenAI used only to convert human command -> structured semantic rule
# - Semantic rules create temporary graph edges during analysis
import json
import os
import sys
from pathlib import Path
from typing import Any, Dict, List, Optional, Set, Tuple
from openai import OpenAI
# --------------------------------------------------
# 0 ENV / OPENAI
# --------------------------------------------------
def load_dotenv(dotenv_path: str = ".env") -> None:
path = Path(dotenv_path)
if not path.exists():
return
for line in path.read_text(encoding="utf-8").splitlines():
line = line.strip()
if not line or line.startswith("#") or "=" not in line or line.startswith("REM "):
continue
key, value = line.split("=", 1)
key = key.strip()
value = value.strip().strip('"').strip("'")
os.environ.setdefault(key, value)
load_dotenv()
api_key = os.getenv("OPENAI_API_KEY")
client = OpenAI(api_key=api_key) if api_key else None
# --------------------------------------------------
# 1 FILES / CONSTANTS
# --------------------------------------------------
STATE_FILE = Path("pal_core_graph_semantic_state.json")
COMMAND_SCHEMA_TEXT = """
Return valid JSON only, with this exact top-level structure:
{
"action": "string",
"relationship_rule": {
"name": "string",
"source_type": "string",
"target_type": "string",
"through_relation": "string",
"new_relation": "string"
}
}
Rules:
- Return valid JSON only.
- Do not include markdown.
- action must be one of:
- "add_semantic_rule"
- "unknown"
- Use "add_semantic_rule" only if the user is clearly defining a relationship rule.
- Example:
Input:
For this investigation, treat all suppliers owned by same parent company as related.
Output:
{
"action": "add_semantic_rule",
"relationship_rule": {
"name": "same_parent_company_suppliers_are_related",
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "related_to"
}
}
"""
DEMO_STATE = {
"entities": [
{"id": "supplier_1", "type": "supplier", "name": "Supplier 1"},
{"id": "supplier_2", "type": "supplier", "name": "Supplier 2"},
{"id": "supplier_3", "type": "supplier", "name": "Supplier 3"},
{"id": "parent_1", "type": "parent_company", "name": "Parent 1"},
{"id": "parent_2", "type": "parent_company", "name": "Parent 2"},
{"id": "site_1", "type": "site", "name": "Site 1"},
{"id": "site_2", "type": "site", "name": "Site 2"},
{"id": "incident_1", "type": "incident", "name": "Incident 1 Site 1"},
],
"relations": [
{"from": "supplier_1", "relation": "owned_by", "to": "parent_1"},
{"from": "supplier_2", "relation": "owned_by", "to": "parent_1"},
{"from": "supplier_3", "relation": "owned_by", "to": "parent_2"},
{"from": "supplier_1", "relation": "serves", "to": "site_1"},
{"from": "supplier_2", "relation": "serves", "to": "site_2"},
{"from": "supplier_3", "relation": "serves", "to": "site_1"},
{"from": "incident_1", "relation": "occurred_at", "to": "site_1"},
],
"semantic_rules": []
}
# --------------------------------------------------
# 2 HELPERS
# --------------------------------------------------
def load_state() -> Dict[str, Any]:
if not STATE_FILE.exists():
return json.loads(json.dumps(DEMO_STATE))
return json.loads(STATE_FILE.read_text(encoding="utf-8"))
def save_state(state: Dict[str, Any]) -> None:
STATE_FILE.write_text(
json.dumps(state, indent=2, ensure_ascii=False),
encoding="utf-8",
)
def reset_state() -> Dict[str, Any]:
state = json.loads(json.dumps(DEMO_STATE))
save_state(state)
return state
def print_usage() -> None:
print(
"Usage:\n"
" python pal_core_04_graph_semantic.py demo\n"
" python pal_core_04_graph_semantic.py status\n"
" python pal_core_04_graph_semantic.py reset\n"
" python pal_core_04_graph_semantic.py related <ENTITY_ID>\n"
" python pal_core_04_graph_semantic.py path <START_ID> <END_ID>\n"
' python pal_core_04_graph_semantic.py command "<natural language instruction>"\n'
)
def entity_by_id(state: Dict[str, Any], entity_id: str) -> Optional[Dict[str, Any]]:
for e in state["entities"]:
if e["id"] == entity_id:
return e
return None
def build_base_neighbors(state: Dict[str, Any]) -> Dict[str, List[Tuple[str, str]]]:
neighbors: Dict[str, List[Tuple[str, str]]] = {}
for e in state["entities"]:
neighbors[e["id"]] = []
for r in state["relations"]:
src = r["from"]
rel = r["relation"]
dst = r["to"]
neighbors.setdefault(src, []).append((rel, dst))
neighbors.setdefault(dst, []).append((f"rev_{rel}", src))
return neighbors
def find_entities_of_type(state: Dict[str, Any], entity_type: str) -> List[Dict[str, Any]]:
return [e for e in state["entities"] if e["type"] == entity_type]
def build_through_index(state: Dict[str, Any], source_type: str, through_relation: str) -> Dict[str, List[str]]:
"""
Example:
supplier_1 --owned_by--> parent_1
returns:
{
"parent_1": ["supplier_1", "supplier_2"]
}
for source_type=supplier, through_relation=owned_by
"""
out: Dict[str, List[str]] = {}
valid_ids = {e["id"] for e in find_entities_of_type(state, source_type)}
for r in state["relations"]:
if r["from"] in valid_ids and r["relation"] == through_relation:
out.setdefault(r["to"], []).append(r["from"])
return out
def build_semantic_edges(state: Dict[str, Any]) -> List[Dict[str, str]]:
new_edges: List[Dict[str, str]] = []
for rule in state.get("semantic_rules", []):
source_type = rule["source_type"]
target_type = rule["target_type"]
through_relation = rule["through_relation"]
new_relation = rule["new_relation"]
if source_type != target_type:
continue
groups = build_through_index(state, source_type, through_relation)
for _, members in groups.items():
members = sorted(set(members))
for i in range(len(members)):
for j in range(i + 1, len(members)):
a = members[i]
b = members[j]
new_edges.append({"from": a, "relation": new_relation, "to": b})
new_edges.append({"from": b, "relation": new_relation, "to": a})
return new_edges
def build_all_neighbors(state: Dict[str, Any]) -> Dict[str, List[Tuple[str, str]]]:
neighbors = build_base_neighbors(state)
semantic_edges = build_semantic_edges(state)
for r in semantic_edges:
src = r["from"]
rel = r["relation"]
dst = r["to"]
neighbors.setdefault(src, []).append((rel, dst))
return neighbors
def bfs_related(state: Dict[str, Any], start_id: str, max_hops: int = 2) -> List[Dict[str, Any]]:
neighbors = build_all_neighbors(state)
if start_id not in neighbors:
return []
results: List[Dict[str, Any]] = []
visited: Set[str] = {start_id}
queue: List[Tuple[str, int, Optional[str]]] = [(start_id, 0, None)]
while queue:
node, depth, via = queue.pop(0)
if depth >= max_hops:
continue
for rel, nxt in neighbors.get(node, []):
if nxt in visited:
continue
visited.add(nxt)
ent = entity_by_id(state, nxt)
results.append({
"entity_id": nxt,
"entity_type": ent["type"] if ent else "unknown",
"via_relation": rel,
"hops": depth + 1,
})
queue.append((nxt, depth + 1, rel))
return results
def bfs_path(state: Dict[str, Any], start_id: str, end_id: str) -> Optional[List[Dict[str, str]]]:
neighbors = build_all_neighbors(state)
if start_id not in neighbors or end_id not in neighbors:
return None
queue: List[Tuple[str, List[Dict[str, str]]]] = [(start_id, [])]
visited: Set[str] = {start_id}
while queue:
node, path = queue.pop(0)
if node == end_id:
return path
for rel, nxt in neighbors.get(node, []):
if nxt in visited:
continue
visited.add(nxt)
queue.append((
nxt,
path + [{"from": node, "relation": rel, "to": nxt}]
))
return None
def build_command_messages(user_command: str) -> List[Dict[str, str]]:
return [
{
"role": "system",
"content": (
"You convert semantic investigation instructions into structured relationship rules.\n\n"
f"{COMMAND_SCHEMA_TEXT}"
),
},
{
"role": "user",
"content": user_command,
},
]
def interpret_command_with_llm(user_command: str) -> Dict[str, Any]:
if client is None:
raise RuntimeError("OPENAI_API_KEY missing. Put it in .env or environment.")
messages = build_command_messages(user_command)
response = client.chat.completions.create(
model="gpt-4o-mini",
messages=messages,
response_format={"type": "json_object"},
)
content = response.choices[0].message.content
return json.loads(content)
# --------------------------------------------------
# 3 COMMANDS
# --------------------------------------------------
def cmd_demo() -> None:
state = reset_state()
print("DEMO OK")
print(f"Saved state to: {STATE_FILE.resolve()}")
print("\n=== STATUS ===")
cmd_status()
def cmd_status() -> None:
state = load_state()
print("=== ENTITIES ===")
print(json.dumps(state["entities"], indent=2, ensure_ascii=False))
print("\n=== BASE RELATIONS ===")
print(json.dumps(state["relations"], indent=2, ensure_ascii=False))
print("\n=== SEMANTIC RULES ===")
print(json.dumps(state["semantic_rules"], indent=2, ensure_ascii=False))
print("\n=== DERIVED SEMANTIC EDGES ===")
print(json.dumps(build_semantic_edges(state), indent=2, ensure_ascii=False))
def cmd_related(entity_id: str) -> None:
state = load_state()
if entity_by_id(state, entity_id) is None:
print("RELATED FAILED")
print(f"Unknown entity: {entity_id}")
return
results = bfs_related(state, entity_id, max_hops=2)
print(f"=== RELATED TO {entity_id} ===")
print(json.dumps(results, indent=2, ensure_ascii=False))
def cmd_path(start_id: str, end_id: str) -> None:
state = load_state()
if entity_by_id(state, start_id) is None:
print("PATH FAILED")
print(f"Unknown start entity: {start_id}")
return
if entity_by_id(state, end_id) is None:
print("PATH FAILED")
print(f"Unknown end entity: {end_id}")
return
path = bfs_path(state, start_id, end_id)
print(f"=== PATH {start_id} -> {end_id} ===")
if path is None:
print("null")
return
print(json.dumps(path, indent=2, ensure_ascii=False))
def cmd_command(user_command: str) -> None:
state = load_state()
try:
parsed = interpret_command_with_llm(user_command)
except Exception as e:
print("COMMAND FAILED")
print(str(e))
return
print("=== LLM PARSED COMMAND ===")
print(json.dumps(parsed, indent=2, ensure_ascii=False))
action = parsed.get("action")
if action != "add_semantic_rule":
print("\nNo semantic rule added.")
return
rule = parsed.get("relationship_rule", {})
required = {"name", "source_type", "target_type", "through_relation", "new_relation"}
missing = [k for k in required if k not in rule]
if missing:
print("\nCOMMAND FAILED")
print(f"Missing rule fields: {missing}")
return
existing_names = {r["name"] for r in state.get("semantic_rules", [])}
if rule["name"] in existing_names:
print("\nCOMMAND OK")
print("Rule already exists.")
return
state.setdefault("semantic_rules", []).append(rule)
save_state(state)
print("\n=== RULE ADDED ===")
print(json.dumps(rule, indent=2, ensure_ascii=False))
print("\n=== DERIVED SEMANTIC EDGES ===")
print(json.dumps(build_semantic_edges(state), indent=2, ensure_ascii=False))
# --------------------------------------------------
# 4 MAIN
# --------------------------------------------------
def main() -> None:
if len(sys.argv) < 2:
print_usage()
return
command = sys.argv[1].strip().lower()
if command == "demo":
cmd_demo()
elif command == "status":
cmd_status()
elif command == "reset":
state = reset_state()
print("RESET OK")
print(f"Saved state to: {STATE_FILE.resolve()}")
elif command == "related":
if len(sys.argv) < 3:
print("Missing ENTITY_ID\n")
print_usage()
return
cmd_related(sys.argv[2])
elif command == "path":
if len(sys.argv) < 4:
print("Missing START_ID and END_ID\n")
print_usage()
return
cmd_path(sys.argv[2], sys.argv[3])
elif command == "command":
if len(sys.argv) < 3:
print("Missing natural language command\n")
print_usage()
return
cmd_command(sys.argv[2])
else:
print(f"Unknown command: {command}\n")
print_usage()
if __name__ == "__main__":
main()
$ python pal_core_04_graph_semantic.py demo
DEMO OK
Saved state to: C:\Users\terry\Downloads\d1_agent\pal_core_graph_semantic_state.json
=== STATUS ===
=== ENTITIES ===
[
{
"id": "supplier_1",
"type": "supplier",
"name": "Supplier 1"
},
{
"id": "supplier_2",
"type": "supplier",
"name": "Supplier 2"
},
{
"id": "supplier_3",
"type": "supplier",
"name": "Supplier 3"
},
{
"id": "parent_1",
"type": "parent_company",
"name": "Parent 1"
},
{
"id": "parent_2",
"type": "parent_company",
"name": "Parent 2"
},
{
"id": "site_1",
"type": "site",
"name": "Site 1"
},
{
"id": "site_2",
"type": "site",
"name": "Site 2"
},
{
"id": "incident_1",
"type": "incident",
"name": "Incident 1 Site 1"
}
]
=== BASE RELATIONS ===
[
{
"from": "supplier_1",
"relation": "owned_by",
"to": "parent_1"
},
{
"from": "supplier_2",
"relation": "owned_by",
"to": "parent_1"
},
{
"from": "supplier_3",
"relation": "owned_by",
"to": "parent_2"
},
{
"from": "supplier_1",
"relation": "serves",
"to": "site_1"
},
{
"from": "supplier_2",
"relation": "serves",
"to": "site_2"
},
{
"from": "supplier_3",
"relation": "serves",
"to": "site_1"
},
{
"from": "incident_1",
"relation": "occurred_at",
"to": "site_1"
}
]
=== SEMANTIC RULES ===
[]
=== DERIVED SEMANTIC EDGES ===
[]
(venv)
terry@LAPTOP-HKPDHF7M MINGW64 ~/Downloads/d1_agent (main)
python pal_core_04_graph_semantic.py related supplier_1
2 secs
$ python pal_core_04_graph_semantic.py related supplier_1
=== RELATED TO supplier_1 ===
[
{
"entity_id": "parent_1",
"entity_type": "parent_company",
"via_relation": "owned_by",
"hops": 1
},
{
"entity_id": "site_1",
"entity_type": "site",
"via_relation": "serves",
"hops": 1
},
{
"entity_id": "supplier_2",
"entity_type": "supplier",
"via_relation": "rev_owned_by",
"hops": 2
},
{
"entity_id": "supplier_3",
"entity_type": "supplier",
"via_relation": "rev_serves",
"hops": 2
},
{
"entity_id": "incident_1",
"entity_type": "incident",
"via_relation": "rev_occurred_at",
"hops": 2
}
]
(venv)
terry@LAPTOP-HKPDHF7M MINGW64 ~/Downloads/d1_agent (main)
python pal_core_04_graph_semantic.py path incident_1 supplier_1
1 sec pause
$ python pal_core_04_graph_semantic.py path incident_1 supplier_1
=== PATH incident_1 -> supplier_1 ===
[
{
"from": "incident_1",
"relation": "occurred_at",
"to": "site_1"
},
{
"from": "site_1",
"relation": "rev_serves",
"to": "supplier_1"
}
]
(venv)
terry@LAPTOP-HKPDHF7M MINGW64 ~/Downloads/d1_agent (main)
python pal_core_04_graph_semantic.py command "For this investigation, treat all suppliers owned by same parent company as related."
6 sec pause
$ python pal_core_04_graph_semantic.py command "For this investigation, treat all suppliers owned by same parent company as related."
=== LLM PARSED COMMAND ===
{
"action": "add_semantic_rule",
"relationship_rule": {
"name": "same_parent_company_suppliers_are_related",
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "related_to"
}
}
=== RULE ADDED ===
{
"name": "same_parent_company_suppliers_are_related",
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "related_to"
}
=== DERIVED SEMANTIC EDGES ===
[
{
"from": "supplier_1",
"relation": "related_to",
"to": "supplier_2"
},
{
"from": "supplier_2",
"relation": "related_to",
"to": "supplier_1"
}
]
(venv)
terry@LAPTOP-HKPDHF7M MINGW64 ~/Downloads/d1_agent (main)
python pal_core_04_graph_semantic.py status
$ python pal_core_04_graph_semantic.py status
=== ENTITIES ===
[
{
"id": "supplier_1",
"type": "supplier",
"name": "Supplier 1"
},
{
"id": "supplier_2",
"type": "supplier",
"name": "Supplier 2"
},
{
"id": "supplier_3",
"type": "supplier",
"name": "Supplier 3"
},
{
"id": "parent_1",
"type": "parent_company",
"name": "Parent 1"
},
{
"id": "parent_2",
"type": "parent_company",
"name": "Parent 2"
},
{
"id": "site_1",
"type": "site",
"name": "Site 1"
},
{
"id": "site_2",
"type": "site",
"name": "Site 2"
},
{
"id": "incident_1",
"type": "incident",
"name": "Incident 1 Site 1"
}
]
=== BASE RELATIONS ===
[
{
"from": "supplier_1",
"relation": "owned_by",
"to": "parent_1"
},
{
"from": "supplier_2",
"relation": "owned_by",
"to": "parent_1"
},
{
"from": "supplier_3",
"relation": "owned_by",
"to": "parent_2"
},
{
"from": "supplier_1",
"relation": "serves",
"to": "site_1"
},
{
"from": "supplier_2",
"relation": "serves",
"to": "site_2"
},
{
"from": "supplier_3",
"relation": "serves",
"to": "site_1"
},
{
"from": "incident_1",
"relation": "occurred_at",
"to": "site_1"
}
]
=== SEMANTIC RULES ===
[
{
"name": "same_parent_company_suppliers_are_related",
"source_type": "supplier",
"target_type": "supplier",
"through_relation": "owned_by",
"new_relation": "related_to"
}
]
=== DERIVED SEMANTIC EDGES ===
[
{
"from": "supplier_1",
"relation": "related_to",
"to": "supplier_2"
},
{
"from": "supplier_2",
"relation": "related_to",
"to": "supplier_1"
}
]
(venv)
terry@LAPTOP-HKPDHF7M MINGW64 ~/Downloads/d1_agent (main)
What this v1 demonstrates
• ODB: explicit typed entities and typed relations
• graph: deterministic traversal and path finding
• LLM semantic layer: converts a human command into a relationship rule
• derived edges: new graph relationships appear without changing the base ontology
That is the key conceptual leap.
Next best refinement is adding rule IDs like S001 and printing which derived edges came from which semantic rule.
26.0618
