← Demo D3


See also

  • #614_pal_3_agentic_ai_qs_v03_26.0715_ss.docx
  • https://learn.palantir.com/speedrun-your-first-agentic-aip-workflow



Notes


P1 Installing marketplace


If you need to install marketplace, then see the original

https://learn.palantir.com/speedrun-your-first-agentic-aip-workflow . I dont want to reinstall on my system because uninstalling the current installation is complicated.

xxx


Q1: deleting the old marketplace is complicated

Yes—potentially, because the old Marketplace installation owns the foundation you are planning to reuse:

  • Patient and Clinical Trial object types
  • Ontology Actions
  • datasets and pipeline
  • Workshop UI

Your new Logic and Automation will reference those existing resources. Deleting/uninstalling the old Marketplace product could therefore break the new implementation.

For now, the safest arrangement is:


Keep Marketplace installation
├─ reuse its data, Ontology and Actions
├─ pause old Automation
└─ create new Logic, Function, Evaluation and Automation

Only remove the Marketplace installation if you intend to remove the entire demo and have first checked all downstream dependencies. Deleting just the old Logic, Evaluation Suite, Function, or Automation is more manageable, but it is unnecessary if they are clearly named and disabled.


Q1: what i mean is, if i want to start clean, then getting rid of the existing stuff is not a simple delete.

Correct. A D3 installation is not one self-contained folder that can necessarily be removed with a single ordinary delete. It creates a dependency graph across Foundry applications:

Automation
→ published Function
→ AIP Logic
→ Action
→ object types
→ datasets/pipeline

It may also include:

  • an Evaluation Suite;
  • Workshop resources;
  • generated Ontology objects;
  • user edits written through Actions.

Marketplace may provide an uninstall/delete installation operation for resources it manages, but:

  • downstream resources you created manually may not be included;
  • active references can block deletion;
  • shared resources must not be removed;
  • Ontology resources and generated data need special care.

A manual cleanup generally proceeds in reverse dependency order:

  1. Pause/delete Automations.
  2. Remove Evaluation Suites and application references.
  3. Retire/remove published Functions and AIP Logic.
  4. Remove Workshop dependencies.
  5. Remove Actions.
  6. Remove object/link types.
  7. Remove pipelines and datasets.
  8. Remove the Marketplace installation record.

Therefore, if the objective is simply to repeat the tutorial cleanly, creating a second set of Logic/Evaluation/Function/Automation resources while retaining the Marketplace foundation is much safer.

For complete isolation, a new namespace with its own Ontology is cleaner than trying to dismantle and recreate everything in the existing namespace. A new folder alone does not provide that isolation.


P2 Add (4) AIP logic / (4a) Use LLM (Build the AIP Logic reasoning)


Q1: i saved this aip_logic and tested. but did not publish.

publish will create the function, and i will not be able to change that function? (only can create new version)

Correct.

Publishing will:

  1. Create the Function identity in the Function Registry.
  2. Create its first immutable published version.
  3. Leave the source AIP Logic editable.

Afterward:

Edit AIP Logic
→ preview/test
→ publish again
→ create a new immutable Function version

You cannot change the implementation of an already published version.

One important point: your current Logic outputs the **Use LLM struct. If the intended final Function should output Ontology edits, add and configure the Action block before the first publication. Changing from a struct output to Ontology edits later is a breaking interface change.**


Q2: breaking interface change? what does that mean?

A breaking interface change means changing the Function’s public contract so existing callers can no longer use it in the same way.

Your current output is:

Struct {
eligibility_decision: String
eligibility_reasoning: String
}

After adding the Action as the output, it becomes:

List<Ontology Edits>

Those output types are incompatible. A caller expecting decision fields cannot consume a list of edits.

Before:
Function → decision/reasoning struct
After:
Function → Ontology edits

Therefore, existing Automations, applications, evaluations, or other functions might need to be reconfigured. This generally requires a major version or a separate Function identity rather than an automatic compatible upgrade.

Because you have not published yet, there is no problem. If your intended final function should modify the Ontology, add the Action first and then publish.

Alternatively, intentionally keep two functions:

Assess Eligibility
→ returns decision/reasoning
Review Patient
→ calls assessment
→ returns Ontology edits

That cleanly separates reasoning from writeback.


Q3: so its very important to create action and test BEFORE creating the function?

Yes—if the final Function is supposed to modify the Ontology.

Recommended order:

Create AIP Logic
→ configure Use LLM
→ add and configure Action
→ preview proposed edits
→ evaluate
→ publish Function

This ensures the first published Function has the intended contract:

Inputs: Patient + Clinical Trial
Output: Ontology edits

You can continue changing its internal prompts and reasoning afterward and publish new compatible versions, provided the inputs and output type remain compatible.

Publishing before adding the Action would create a different contract—a Function returning a decision struct rather than Ontology edits. That is appropriate only if you intentionally want a separate read-only assessment Function.


Q4: so evaluate is important before creating function?

but for my simple demo i want to leave evaluate out…. do it at the end…. to avoid too much complexity.

No. Formal evaluation is not required before publishing. It is a recommended quality-control step.

For your simplified demo, this order is reasonable:

1. Build AIP Logic
2. Add the Action
3. Preview manually
4. Publish the Function
5. Create Automation
6. Add an Evaluation Suite later

The important requirement is to preview and manually verify the complete Logic—including its Action and output type—before publishing.

For production, evaluation should normally happen before enabling automatic edits. For a teaching demo, moving Evaluation to an optional final chapter reduces complexity and keeps the main architecture easier to understand.


P3 Add (4) AIP / (4b) Action (Add Ontology modification)


Q1: So this is a successful test of aip_logic.

what is “Function inputs”… this really confused me, because there is no function yet.

Yes, this is a successful preview test of the complete AIP Logic. It generated the decision and proposed the expected Ontology edits, but did not apply them.

“Function inputs” means the test values supplied to the AIP Logic’s declared inputs:

  • patient → Sita Menon
  • clinicalTrial → Glycurex for Type 2 Diabetes

The terminology is confusing because Foundry treats an AIP Logic as an unpublished function definition while you are authoring it.

AIP Logic before publication
= editable function definition
After publication
= registered, versioned Function

Therefore, “Function inputs” does **not mean that a published Function already exists. It means:**

Inputs for this preview execution of the Logic that may later be published as a Function.

A clearer UI label would have been **“Logic preview inputs.”**


P4 Publish the (3) AIP Logic as a Function


Q2: all of these details.. and none of them explained in teh demo doc.

Agreed. The demo provides the required clicks but does not explain the underlying lifecycle:

Create AIP Logic
→ define inputs
→ configure LLM
→ add Action
→ preview proposed edits
→ bind Logic to an Ontology
→ publish immutable Function version
→ select that Function in Automate
→ bind runtime inputs
→ choose approval or automatic execution
→ activate monitoring

Several distinctions are left implicit:

  • An AIP Logic is treated as a function definition before publication.
  • “Function inputs” in Preview are actually Logic preview inputs.
  • Referencing Ontology objects is not the same as formally binding the Logic to that Ontology.
  • Previewed edits are not committed.
  • Publishing creates a versioned Function Registry entry.
  • The published Function is an immutable snapshot, not a live reference to the editable draft.
  • Automate invokes a selected published version.
  • The Action block produces edits; Automate determines whether they are staged or committed.

These are not peripheral details—they determine how the system actually works. Your rewritten documentation is valuable because it explains the resource model and lifecycle rather than merely reproducing the screen sequence.


P4/P5/P6 AIP_logic / Function / Automation details

xxx

xxx

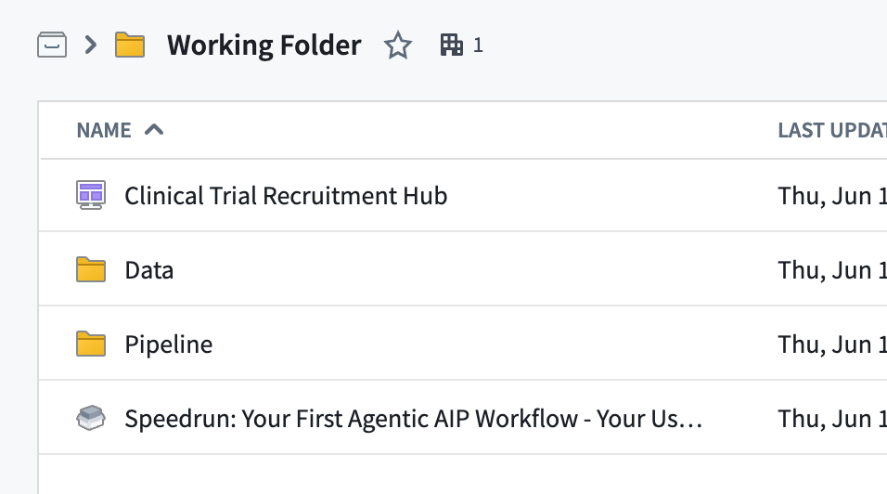

(1) so in demo3, all i create in my dir (if the marketplacce was already installed and i created a new dir) is

  • AIP_logic
  • Automation
  • evalution (? i did not do that yet)

(2) the function is part of the ontology.

but it (and its future versions) has a fixed a source AIP_logic.

(3) so if i want to test creating a function from scratch,

then i need to create a new AIP_logic.

(4) how can i organize the list of ontology functions by date created?

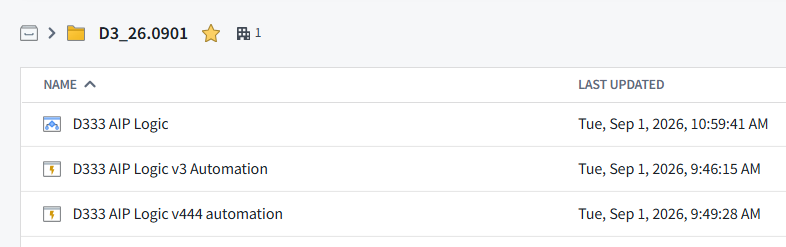

1. Resources in your new folder

Yes. You create:

  • AIP Logic
  • Evaluation Suite
  • Automation

Publishing the AIP Logic automatically creates the Function entry; it is not another file you manually create in the folder.


2. Function and source AIP Logic

Yes. The Function is registered with the Ontology/Function Registry and has a fixed source AIP Logic.

Each published version is an immutable snapshot:

One AIP Logic
├─ Function version 1.0.0
├─ Function version 1.0.1
└─ Function version 1.1.0


3. Creating a Function from scratch

Yes. To create a new, independent Function from scratch, create a new AIP Logic and publish it.

To create only a new version of an existing Function, modify its existing source AIP Logic and publish again.

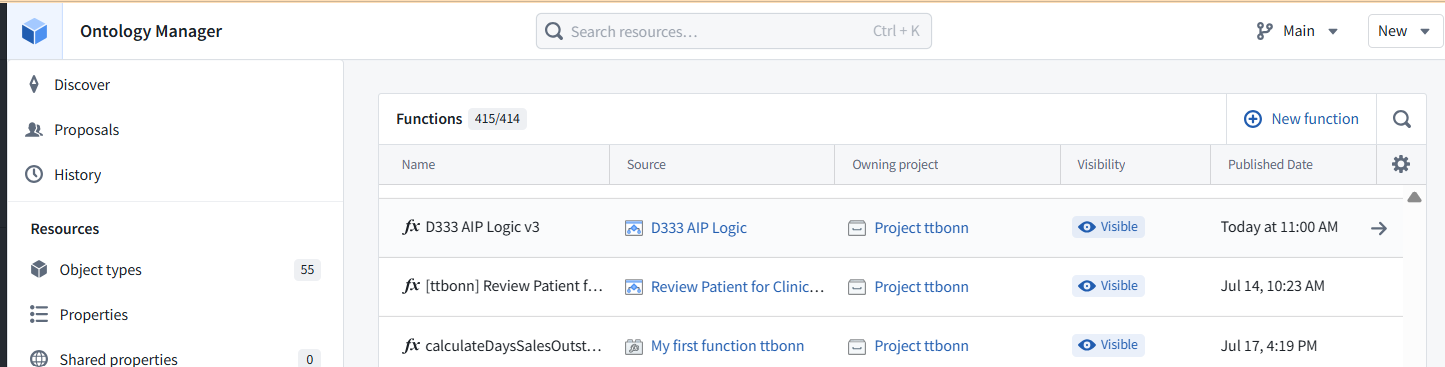

4. Sort Functions by date

Click the Published Date column heading to sort ascending or descending.

That sorts by publication date, not necessarily the original creation date. The Functions list does not appear to expose a separate Created Date column. If you need clearer long-term organization, use consistent name prefixes, source names, and owning projects.


You are correct. Published Date is not sortable in that table. Only Name shows a sort indicator.

My previous instruction was wrong. This is either a UI limitation or defect in Ontology Manager.

Practical workarounds:

  • use date/version prefixes in function names;
  • search by function or source Logic name;
  • use the Owning project and Source columns;
  • inspect individual Function details for publication dates.

There is no visible way in that dialog to order the complete list by publication or creation date.









The diagram captures the architecture well. I would make two technical clarifications:

  1. With the demonstrated Objects added to set condition and no filters, modifying an existing Patient does not trigger the automation. The trigger is a new Patient entering the monitored object set. A modification would trigger it only if filters were added and the modification caused the Patient to newly enter that set.
  2. The UI display is not part of the agent’s control loop; it merely presents the resulting Ontology state, possibly after a manual refresh.

A polished minimal description could be:


1.3 D3 (WIP) = “Speedrun: Your First Agentic AIP Workflow” (26.0829)

This demo builds the first autonomous operational agent in this sequence. For a discussion of what “agent” means in Foundry, see the D2 notes.

The user can:

1a. Manually review or modify an existing Patient’s eligibility decision through a governed Action; or
1b. Add a new Patient, causing that Patient to enter the object set monitored by Automate.

The agent is the complete event-driven system:

2. Automate observes the Ontology and supplies the recurring control loop. When a Patient enters the monitored object set, it invokes the published AIP Logic for that Patient and the configured Clinical Trial.

3. AIP Logic reads the Patient and Clinical Trial objects and uses an LLM to determine the eligibility decision and reasoning.

4. A governed Action writes the decision and reasoning back to the Patient object. Because the automation is configured to automatically run edits, no human is required to initiate or approve each case.

5. The UI displays the updated Patient state, potentially after a manual refresh.

In compact form:

Patient enters monitored set
→ Automate triggers
→ AIP Logic reasons
→ Governed Action commits edits
→ Updated Patient appears in the UI

FDE: The agent is not the LLM or AIP Logic alone. It is the complete event-driven system comprising Ontology state, Automate, AIP Logic, the LLM, and the governed Action.






**2 questions 26.0829 19:23**

Q1:

the foundry demo3 docs seem to say that the AIP logic is the agent. but i like your definition.

i think its the combo of 1) automation flow, 2) AIP function, and 3) AIP logic.

I kind of see all of foundry as one big agent.

Q2:

how would you compare Demo agent with Q2.1 typical agentic ai agent Q2.2 langchain/graph



Q1: Where is the boundary of the “agent”?

The Demo 3 documentation appears to use agent as a convenient label for the AIP Logic. That is understandable at the authoring level: the Logic contains the model instructions, reads the relevant context, makes the decision, and constructs the action.

However, there are three useful boundaries.


1. Narrow authoring boundary: AIP Logic is the agent

Patient + Clinical Trial
        ↓
AIP Logic
  ├─ reads properties
  ├─ calls the LLM
  ├─ determines eligibility
  └─ constructs an Action

This is probably what the documentation means. The AIP Logic contains the agent’s decision policy—roughly its “brain.”

By itself, however, it does not continuously monitor anything. Someone or something must invoke it, and its edits must be executed.


2. Operational boundary: the complete system is the agent

Your preferred definition is stronger for describing what actually runs:

Ontology state
      ↓
Automate trigger
      ↓
Published AIP Logic function
      ↓
LLM reasoning
      ↓
Governed Action
      ↓
Updated Ontology state

At this boundary:

  • Ontology is the agent’s observable environment and durable operational state.
  • Automate supplies event detection and the recurring outer control loop.
  • AIP Logic supplies the decision procedure.
  • The LLM performs the probabilistic reasoning within that procedure.
  • The Action supplies governed actuation.
  • Workshop/UI allows human supervision and correction.

That is the complete observe → reason → act system.


AIP Logic versus AIP function

There is one small correction to your list: the AIP Logic and published AIP function are not two independent reasoning components.

They are two lifecycle representations of essentially the same implementation:

AIP Logic                  Published Function
(authoring definition)  →  (versioned executable release)

You construct the workflow in AIP Logic, then publish it as a versioned Foundry function so that Automate and other applications can invoke it.

Therefore, the three principal runtime components are more precisely:

  1. Automate
  2. The published AIP Logic function
  3. The governed Ontology Action

With the Ontology serving as the stateful environment connecting them.


3. Platform boundary: all of Foundry as an agent

It is reasonable at a very high conceptual level to see Foundry as one large agent:

  • it receives data from its environment;
  • maintains a semantic model of that environment;
  • runs deterministic and probabilistic reasoning;
  • reacts to events;
  • presents decisions to people;
  • executes governed actions;
  • receives updated data and repeats the cycle.

But technically, I would describe Foundry as an agentic operating platform rather than one agent. It can host many workflows with different goals, triggers, permissions, models, and actions. Treating all of Foundry as one agent makes it harder to identify which workflow is responsible for a particular decision.

A useful formulation is:

AIP Logic is the agent’s decision component; the combination of Automate, the published Logic, the Ontology, and governed Actions is the operational agent; Foundry is the environment and runtime that hosts many such agents.


Q2.1: Comparison with a typical agentic-AI agent

The Demo 3 agent is a narrow, event-driven operational agent. It is considerably more constrained than what is commonly marketed as a general agentic-AI agent.


Demo 3

Its path is predetermined:

New Patient
→ read fixed Patient and Trial properties
→ make one LLM call
→ return a fixed output structure
→ invoke one predefined Action
→ finish

The LLM determines the contents of the decision, but not the shape of the workflow.

It does not dynamically decide:

  • which goal to pursue;
  • which data sources to inspect;
  • which tools to use;
  • whether to invoke another model;
  • whether to repeat a step;
  • how to decompose a task;
  • when to ask a human;
  • whether its first answer needs revision.

Consequently, it has a low degree of cognitive autonomy, but meaningful operational autonomy.


A typical tool-using agent

A more conventional agentic-AI architecture often looks like:

Receive goal
→ observe current state
→ decide next step
→ choose and call a tool
→ inspect tool result
→ update working state
→ repeat until goal or stopping condition

It may include:

  • dynamic planning;
  • tool selection;
  • multiple reasoning iterations;
  • conditional branching;
  • short- or long-term memory;
  • retrieval;
  • self-correction or reflection;
  • delegation to subagents;
  • dynamic termination;
  • human approval gates.


Comparison

Characteristic Demo 3 Typical agentic-AI agent
Goal Fixed: assess trial eligibility Often supplied dynamically
Trigger Ontology event User request, event, API, or schedule
Workflow Predetermined Often dynamically selected
LLM calls One fixed call Potentially many
Tool selection Fixed Action Agent may select among tools
Planning None beyond classification reasoning Often explicit or implicit
Iteration One pass per Patient Repeats until completion
Memory Ontology provides durable domain state Working memory plus optional persistent memory
Action Governed Ontology Action APIs, databases, code, search, messages, etc.
Human oversight Optional approval or later correction Varies
Auditability Strong and Ontology-centered Depends heavily on framework
Autonomy Operational but narrowly scoped Potentially broader and more cognitive
Predictability Relatively high Usually lower

The Demo 3 design is less flexible, but that is not necessarily a weakness. For a regulated clinical workflow, its constraints are advantages:

  • predictable execution path;
  • typed inputs and outputs;
  • explicit permissions;
  • governed edits;
  • auditable actions;
  • versioned logic;
  • optional human approval;
  • controlled failure and retry behavior.

I would call it:

A deterministic operational workflow containing an LLM reasoning step, made autonomous by event-driven execution.

It is “agentic,” but it is not a general-purpose planning agent.


Q2.2: Comparison with LangChain and LangGraph


LangChain

LangChain is primarily a collection of components for constructing LLM applications:

  • prompts;
  • model wrappers;
  • retrievers;
  • tools;
  • output parsers;
  • chains;
  • agent executors.

You could implement the core of the Demo 3 Logic as a LangChain chain:

Load Patient and Trial
→ construct prompt
→ invoke model
→ parse structured result
→ call update tool

However, you would normally need to provide or integrate several surrounding capabilities yourself:

  • database or application state;
  • event monitoring;
  • authentication and authorization;
  • deployment;
  • API hosting;
  • tool permissions;
  • transaction handling;
  • audit records;
  • UI;
  • retries and operational monitoring.

Foundry provides these as parts of an integrated platform.


LangGraph

LangGraph is the closer comparison because it models an application as a stateful graph of nodes and transitions.

The Demo 3 agent could be represented approximately as:

flowchart LR
    A[Patient-added event] --> B[Load Patient and Trial]
    B --> C[LLM eligibility assessment]
    C --> D[Validate structured output]
    D --> E[Update Patient]
    E --> F[End]

In LangGraph terms:

  • each processing step could be a node;
  • graph state would hold the Patient, Trial, decision, and reasoning;
  • edges would determine what executes next;
  • a tool node would perform the update;
  • conditional edges could route uncertain cases to human review;
  • a checkpointer could retain execution state.

Demo 3 is essentially a very simple, single-pass graph. It has no cyclic reasoning edge.


Conceptual mapping

Foundry Demo 3 Rough LangChain/LangGraph equivalent
Ontology object Domain record or typed application state
Ontology Operational datastore plus semantic domain model
Automate condition Event listener, webhook, queue consumer, or graph trigger
AIP Logic source Chain or graph definition
Published AIP function Deployed/versioned runnable
Use LLM block Model node with structured output
Logic inputs Initial graph state
Eligibility struct Typed graph-state fields
Action Type Governed tool or transactional command
Automatically run edits Tool execution without approval interrupt
Stage for approval Human-in-the-loop interrupt
Action permissions Tool authorization and policy layer
Evaluation suite Agent evaluation framework, roughly comparable to LangSmith evaluations
Automation retries Node/task retry policy
Workshop Operational application/frontend
Ontology history and action audit Persistent records, traces, and audit infrastructure


The major difference

With LangGraph, you principally build the agent control graph, then assemble the infrastructure around it.

With Foundry, the control logic is embedded in an existing operational system:

Data pipelines
+ semantic Ontology
+ object security
+ versioned functions
+ LLM reasoning
+ governed Actions
+ event automation
+ evaluation
+ operational UI

This makes Foundry more opinionated and less code-flexible, but much of the production environment is already present.

LangGraph generally gives you more freedom to create:

  • loops;
  • planners;
  • dynamic tool routing;
  • multiple agents;
  • custom memory;
  • arbitrary code nodes;
  • unusual control-flow patterns.

Foundry gives you stronger built-in integration for:

  • enterprise data;
  • ontology-backed state;
  • permissions;
  • transactional edits;
  • action governance;
  • auditability;
  • operational applications.


Bottom line

Demo 3:
event → one fixed reasoning step → one governed action → end

Typical LangGraph agent:
goal/event → dynamically traverse stateful graph
           → call tools
           → inspect results
           → loop or branch
           → stop, escalate, or act

The Demo 3 system could be represented in LangGraph, but it would be an extremely small graph. Its distinguishing feature is not sophisticated agent planning; it is the tight integration of AI reasoning with governed enterprise state and action.






“There is one small correction to your list: the AIP Logic and published AIP function are not two independent reasoning components.”

the function is just a refernence i though.. but still, its a separate UI dialog , so i pasted it anyway. my primary goal is to help the reader understand all the dialogs. i will add you comment, but its ok to keep the diagram the same?

FDE:

Yes, keep the diagram as it is. Your diagram’s purpose is to explain the Foundry user experience and the relationships among its dialogs, not merely to present an abstract runtime architecture.

The separate AIP Function box is useful because readers will encounter it as a separate Foundry resource/UI:

AIP Logic editor
      ↓ publish
Function Registry entry
      ↓ select
Automate effect

The Function Registry entry is effectively the published, versioned reference/interface through which other Foundry applications invoke the AIP Logic. It exposes information such as:

  • function name and RID;
  • published version;
  • inputs;
  • output type;
  • containing project;
  • underlying AIP Logic resource.

Thus, it is not a second reasoning stage, but it is a separate resource representation and an important configuration dialog.

I would keep the diagram and add a short annotation such as:

AIP Function: the published, versioned interface/reference for the AIP Logic—not an additional reasoning step.

You might also adjust the arrow labels to make the lifecycle explicit:

AIP Logic ──published as──▶ AIP Function
Automate ──invokes through──▶ AIP Function
AIP Function ──executes──▶ AIP Logic

Or, with minimal disruption to the diagram:

The “AIP Function” and “AIP Logic” boxes show two Foundry UI/resource views of the same executable logic. The Function Registry entry is the published interface selected by Automate; the Logic editor contains its implementation.

That preserves the diagram’s value as a map of what the user sees in Foundry, while preventing readers from interpreting the function and Logic as two successive reasoning engines.






**Yes—professional Foundry developers do substantial work in the UI. Foundry is not a conventional “everything lives in source code” development environment.**

However, they usually use a hybrid approach, and they do not repeatedly traverse all these dialogs during normal operation.


What professionals commonly build in the UI

Several important Foundry resources are primarily visual or configuration-driven:

  • Ontology Manager: object types, links, properties, and Actions
  • Automate: triggers, effects, retries, and approval behavior
  • Workshop: operational application interfaces
  • AIP Logic: visual LLM and business-logic workflows
  • Pipeline Builder: no-code/low-code data pipelines
  • Function Registry: inspect and manage published functions
  • Evaluation suites: test cases and evaluators
  • Schedules, permissions, and resource configuration

Consequently, the dialogs in your diagram are real parts of professional Foundry development—not merely simplified tutorial interfaces.


What is usually done in code

For more complex implementations, developers often use:

  • Python transforms for data pipelines;
  • TypeScript or Python Functions;
  • OSDK applications;
  • tests in code repositories;
  • branches and pull requests;
  • reusable libraries and shared components.

For example, a professional could replace the visual AIP Logic with a TypeScript or Python function. But they might still configure the following through Foundry UIs:

  • its Ontology imports;
  • the Action Type;
  • the Automate trigger;
  • permissions;
  • the Workshop application;
  • deployment and monitoring settings.

So moving the reasoning into code does not eliminate all the platform configuration.


Why this demo feels especially complex

Demo 3 crosses almost every layer of Foundry:

Source files
→ data pipeline
→ datasets
→ Ontology object types
→ Actions
→ AIP Logic
→ published Function
→ evaluation suite
→ Automate
→ Workshop UI

Each layer has its own resource, lifecycle, and dialog. The demo documentation focuses on the individual clicks but does not first provide a strong architectural map. That makes the process feel like a collection of unrelated screens.

Your diagram is useful precisely because it supplies the missing system-level view.


The complexity has two sources


1. Genuine platform complexity

Foundry separates:

  • data processing;
  • semantic modeling;
  • AI reasoning;
  • authorization;
  • transactional writeback;
  • triggering;
  • evaluation;
  • presentation.

That is more complicated than writing a small LangGraph script, but it also provides enterprise controls that a standalone script would need to acquire separately.

For example, the Action is not merely a function call. It establishes:

  • which object can be changed;
  • which properties can be changed;
  • what inputs are required;
  • who may perform the operation;
  • how the operation is audited;
  • whether it is automatically executed or staged for approval.


2. UI and resource-model complexity

Some of the apparent complexity is indirection:

AIP Logic
→ publish
→ Function Registry entry
→ select function version in Automate

These are not three different reasoning systems. They are the authoring, publication, and consumption views of one implementation. Nevertheless, Foundry exposes each lifecycle stage as a separate resource or dialog.


How experienced teams manage it

Professional teams generally reduce the cognitive load by:

  • dividing responsibilities among data, Ontology, application, and AI developers;
  • using standard project structures and naming conventions;
  • starting from templates or Marketplace installations;
  • reusing object types, Actions, and functions;
  • developing changes on branches;
  • documenting the architecture rather than only the UI procedure;
  • presenting ordinary users with a Workshop application instead of the development interfaces.

After deployment, a clinical staff member would normally see only something like:

Add Patient
→ wait for assessment
→ review eligibility
→ optionally correct it

They would not interact with Pipeline Builder, Ontology Manager, AIP Logic, Function Registry, or Automate.


Practical assessment

Foundry trades local simplicity for integrated operational governance.

A conventional developer might initially prefer:

result = model(patient, trial)
database.update(result)

That appears much simpler. But a production implementation must eventually answer:

  • What is the Patient schema?
  • Who can read the clinical data?
  • Who may change eligibility?
  • How is the model version recorded?
  • What triggers execution?
  • What happens on failure?
  • Can staff override the result?
  • How are changes audited?
  • How is the application deployed?
  • How are model outputs evaluated?

Foundry gives each concern an explicit platform construct—which is powerful, but produces exactly the collection of resources and dialogs shown in your diagram.

So the short answer is:

Yes, professional Foundry developers work extensively in these UIs, usually alongside code. Your demo feels complex because it is constructing an entire governed operational AI system, not merely making an LLM call—and because Foundry exposes every layer and lifecycle stage as a separate resource.







PAL-DEMO-3: Palantir agentic AI “speedrun” (quick start) (26.0713)

See the working text for this QS in


01
drones






NOTES



ME: in the speedrun it says

“5.9 Summary Large Language Models (LLMs) are inherently non-deterministic, meaning their responses can vary even when given the same input. “

that is false.

FDE/GPT:

You’re right that the statement is too categorical.

A better version would be:

Large Language Models (LLMs) are often non-deterministic in practice, meaning their responses can vary even for the same input depending on model settings, sampling parameters, backend implementation, model updates, and execution environment.

Even when configured for more deterministic behavior, AI systems built on LLMs should still be rigorously evaluated for performance, reliability, and regression risk.

Why the original wording is misleading:

  • LLMs are not inherently non-deterministic in the strict sense.
  • With fixed weights, fixed input, deterministic decoding, fixed infrastructure, and no stochastic sampling, an LLM can produce deterministic outputs.
  • However, many deployed LLM-powered systems are non-deterministic or only approximately deterministic because of sampling, temperature, tool use, retrieval variation, parallelism, model/version changes, or provider-side implementation details.

So the core evaluation recommendation is valid, but the explanation should be more precise.

ME: “too categorical” :)

FDE: 🙂 Fair.

“False” is more direct.

Suggested replacement:

Large Language Models (LLMs) are not inherently non-deterministic. With fixed weights, fixed inputs, deterministic decoding, and a stable execution environment, an LLM can produce deterministic outputs.

However, LLM-powered applications often exhibit non-deterministic behavior in practice due to sampling settings, model/version changes, retrieval variability, tool use, distributed serving infrastructure, or other system-level factors.

This makes it important to rigorously evaluate the performance and reliability of AI agents built on top of LLMs.



xxxxxxxxxxxxxxxxxxxxxxxxx

Yes — exactly. In this speedrun setup, those labels come from the imported Marketplace Workshop app’s Ontology resources, specifically the action type and object type definitions that were installed with the marketplace package.

For this case:

  • Workshop table column labels like Eligibility Decision / Eligibility Decision Reasoning come from the Patient object type property display names.
  • Action form labels come from the action type parameter display names.
  • The AIP Logic action block labels come from the action type parameters on [Ttbonn] Modify Eligibility Decision.
  • The rules mapping connects those action parameters to the Patient object properties with matching display names.

So the same words appear in multiple places because the imported package created coordinated Ontology resources:

Marketplace install
  └─ Ontology
      ├─ [Ttbonn] Patient object type
      │   ├─ property: Eligibility Decision
      │   └─ property: Eligibility Decision Reasoning
      │
      └─ [Ttbonn] Modify Eligibility Decision action type
          ├─ parameter: Eligibility Decision
          ├─ parameter: Eligibility Decision Reasoning
          └─ rule maps parameters → Patient properties

And yes — it’s complicated because the text is not “defined in the dialog” directly. The dialog is rendering Ontology metadata from the imported solution.


yyyyyyyyyyyyyyyyyyy

Right — that screenshot shows where the [ttbonn] prefix is configured during the Marketplace installation.

Specifically:

  • The install step is “Step 7: Customize your…”
  • In Outputs
  • Under “Prefix ontology entities”
  • The prefix value is set to:
ttbonn

Because “Display name and API name” is selected, Foundry applies that prefix to both:

  1. Ontology display names, e.g.
    • [Ttbonn] Patient
    • [Ttbonn] Clinical Trial
    • [Ttbonn] Modify Eligibility Decision
  2. Ontology API names, e.g.
    • ttbonn...

That prefixing is separate from the field labels like:

  • Eligibility Decision
  • Eligibility Decision Reasoning

Those field labels are still defined by the imported Ontology entities themselves — object type properties and action type parameters — but the marketplace installer is adding the [Ttbonn] namespace/prefix around the imported entities so multiple users can install the same speedrun package without name collisions.


zzzzzzzzzzzzzzzzzzzzzzzz

ME: i’ve been trying to figure out where the “agent” in this “agent demo” is and what it does. seems like its in the “action” (red square in diagram). and all it does? just takes LLM-prompt-defined outputs from LLM and maps them to the ontology-defined outputs. thats it????

Pretty much, yes — for this speedrun, the “agentic” part appears to be very thin.

From the screenshot, the workflow is essentially:

Inputs
  patient
  clinicalTrial
    ↓
Use LLM
  returns struct:
    eligibility_decision: String
    eligibility_reasoning: String
    ↓
Apply ontology action:
  [Ttbonn] Modify Eligibility Decision
    patient = patient
    Eligibility Decision = Use LLM.eligibility_decision
    Eligibility Decision Reasoning = Use LLM.eligibility_reasoning
    ↓
Patient object is updated

So the red-square block is not really the agent reasoning step. It is an ontology edit/action application block. Its job is to take outputs from the previous Use LLM block and pass them into the [Ttbonn] Modify Eligibility Decision action.

The actual “AI” part is the Use LLM block above it.

And the overall “agent” is probably being used loosely to mean:

  1. Receives contextual inputs: patient, clinicalTrial
  2. Uses an LLM prompt to decide eligibility and generate reasoning
  3. Takes an action by writing the decision back to the Ontology
  4. Can be triggered by Automation or manually from Workshop

But if by “agent” you mean a system that plans, chooses among tools, loops, searches, self-corrects, or dynamically decides what action to take — then no, this does not look like that.

It looks more like:

LLM classification + explanation + writeback action

or

Prompted decision function with ontology edit

The action block itself is just the bridge from the LLM output into the Ontology:

Component What it does
Use LLM Reads patient/trial context and produces eligibility_decision, eligibility_reasoning
[Ttbonn] Modify Eligibility Decision action block Writes those values to Patient fields
Action type Defines the editable parameters and rules
Workshop app Displays the Patient table and lets users review/run things
Automation Runs the Logic function on some trigger/schedule

So your summary is basically right:

The “agent” takes LLM-prompt-defined outputs and maps them into ontology-defined action parameters, which update ontology properties.

That’s likely the entire demo pattern. “Agentic” here mostly means LLM + tool/action side effect, not autonomous multi-step agency.


ffffffffffffffffffffffffff

ME: i think what the demo means by agent is possibly the entire ““Review Patient for Clinical Trial” block… they never really say clearly what the agent is.

FDE/GPT: Yes — that’s probably the most charitable reading.

In this demo, “the agent” is likely the whole Logic function:

Review Patient for Clinical Trial

That Logic function contains:

  1. Inputs
    • patient
    • clinicalTrial
  2. LLM decision step
    • The Use LLM block prompts the model to review the patient against the trial.
    • It returns structured fields:
      • eligibility_decision
      • eligibility_reasoning
  3. Action / ontology edit step
    • The [Ttbonn] Modify Eligibility Decision block writes those fields back to the Patient object.
  4. Automation / app integration
    • The function can be triggered from Workshop or by Automation.

So the demo is probably using agent to mean:

An AI-enabled workflow that observes ontology context, uses an LLM to make a decision, and takes an action in the Ontology.

But you’re right: they do not seem to clearly define the boundary of the agent.

They could have said something like:

In this speedrun, the “agent” is the Review Patient for Clinical Trial Logic function. It uses an LLM to evaluate a patient against a selected clinical trial, then applies an Ontology action to save the eligibility decision and reasoning back to the Patient object.

That would make the architecture much clearer. Currently, the word “agent” can be interpreted as:

Possible interpretation Is that what the demo shows?
The Use LLM block only Partially — this is the reasoning step
The action block No — this only writes values
The whole Logic function Most likely
The automation that runs the function Part of deployment, not the agent itself
A persistent autonomous assistant No
A multi-tool planner/agent loop No

So yes: the demo calls it “agentic,” but what it actually builds is more specifically a Logic-based LLM workflow with an ontology action side effect.


ggggggggggggggggggggggggg

ME: “charitable” ??? :)

🙂 Fair again.

Less polite version:

They’re calling the whole Review Patient for Clinical Trial Logic function the “agent,” but they don’t clearly define that.

And what it actually does is simple:

patient + clinicalTrial
        ↓
Use LLM prompt
        ↓
structured output:
  eligibility_decision
  eligibility_reasoning
        ↓
Ontology action
        ↓
write those two values onto the Patient object

So yes:

The “agent” is probably just the full Logic workflow: LLM call + ontology writeback.

Not a planner.
Not autonomous.
Not choosing tools.
Not looping.
Not really “agentic” in the stronger sense.

It’s an LLM-backed workflow/function that updates ontology fields.


26.0903 (v1 26.0830)
