← 3c PAL


(WIP)

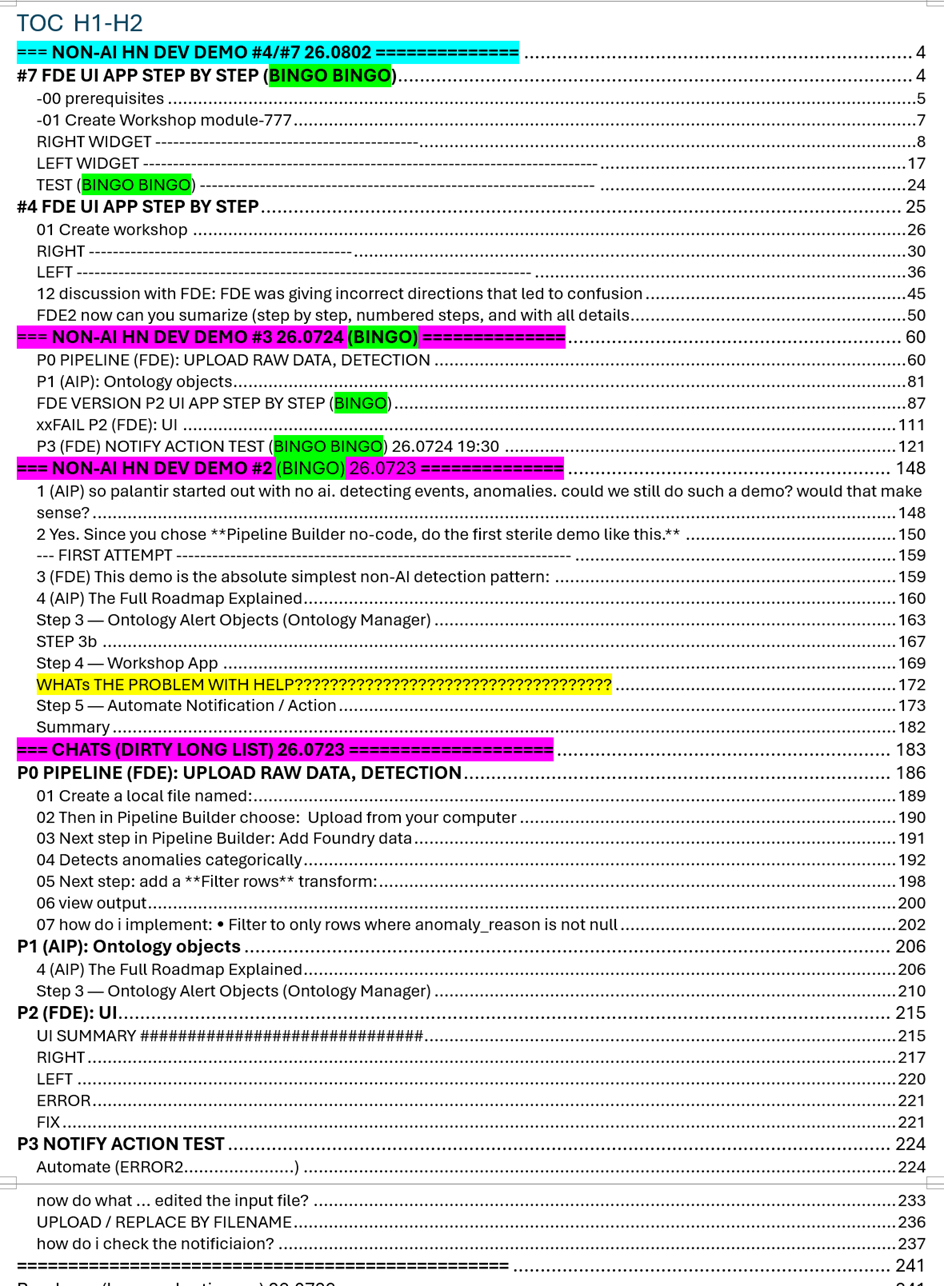

TOC

  • INTRO
  • P0 PIPELINE
  • P1 ONTOLOGY
  • P2 UI APP (Workshop)
  • P3 NOTIFICATION

NOTES

  • Text from #620_pal_9_aip-fde_demo_hn_v05_26.0725_ss.
  • ask FDE for details”
    • non-AI PAL haystack needle detection (PAL’s original algorithms)
    • No AI, searching for haystack needles.
    • This was how PAL started 25 years ago.
    • You can do this, but you have to be very clever to get everthing just right.
    • Much more data massaging and big procedural programming for needle search.
    • ontology (token library)
    • CPU program detection?





INTRO


1 so palantir started out with no ai. detecting events, anomalies. could we still do such a demo? would that make sense?

Yes. That would make a lot of sense.

A non-AI Palantir-style demo could focus on:

data integration → rules/logic → anomaly detection → operational alert → investigation workflow

No LLMs. No ML required.

Simple demo idea

Use sterile generated data:

event_log
entity_table
threshold_rules

Detect:

  • unusually high value,
  • too many events in short time,
  • missing expected event,
  • state transition violation,
  • duplicate IDs,
  • suspicious relationship pattern.

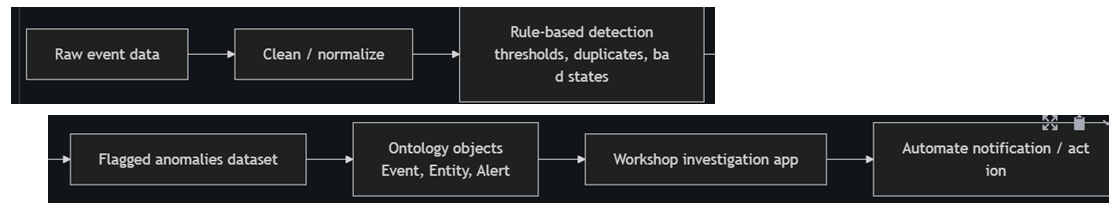

Minimal flow

drones

Why it makes sense

This captures classic Palantir value:

connect messy operational data, detect something important, and put it into a workflow where a human can investigate and act.

That is foundational Palantir, even without AI.


2 Yes. Since you chose **Pipeline Builder no-code, do the first sterile demo like this.**

Use folder:

:resource[ri.compass.main.folder.c7b26d6a-4160-4c77-a340-7e55402c1de1]

Demo: Rule-Based Anomaly Detection

Goal

raw_events → score events → flagged_anomalies

No AI. No model. No ontology yet.

1. Create a new Pipeline Builder pipeline

Name:

sterile_anomaly_demo

Start with:

Manually enter data

2. Create input table: raw_events

Columns:

column type
event_id string
entity_id string
value double
status string
expected_status string

Rows:

event_id entity_id value status expected_status
E001 A 25 OK OK
E002 A 140 OK OK
E003 B 40 ERROR OK
E004 B 75 OK OK
E005 C 200 ERROR OK
E006 C 10 OK OK
E007 D 95 WARN OK
E008 D 15 OK OK

3. Add a transform: create anomaly reason

Add a calculated column:

anomaly_reason

Logic:

if value > 100 → HIGH_VALUE
else if status != expected_status → STATE_MISMATCH
else NORMAL

If Pipeline Builder has a formula/CASE expression, use:

CASE
  WHEN value > 100 THEN 'HIGH_VALUE'
  WHEN status != expected_status THEN 'STATE_MISMATCH'
  ELSE 'NORMAL'
END

Name this intermediate dataset/node:

scored_events

4. Filter anomalies

Add a Filter rows transform:

anomaly_reason != NORMAL

Output node:

flagged_anomalies

Expected flagged rows:

event_id reason
E002 HIGH_VALUE
E003 STATE_MISMATCH
E005 HIGH_VALUE
E007 STATE_MISMATCH

Expected count:

4 anomalies out of 8 events

5. Add output datasets

Create two outputs:

scored_events
flagged_anomalies

If you only want one output, use:

flagged_anomalies

Final pipeline diagram

flowchart LR
    A["raw_events<br/>8 sterile test rows"] --> B["scored_events<br/>add anomaly_reason"]

    B --> C["flagged_anomalies<br/>filter anomaly_reason != NORMAL"]

What this proves

This demo proves the classic non-AI Palantir pattern:

ingest data → apply rules → identify anomalies → create operational output


3 Yes — exactly. This demo is the absolute simplest non-AI detection pattern:

fixed input dataset
   ↓
rule-based logic
   ↓
filtered output dataset
   ↓
manual inspection

Your summary is accurate:

  • Input: hard-wired file/dataset raw_events
  • Logic: deterministic rules
    • value > 100
    • status != expected_status
  • Output: flagged_anomalies
  • Use: manually open the output dataset to inspect results

This is not yet operational. It is just the foundational detection pipeline.

The next layers would be:

manual dataset output
→ dashboard/table
→ ontology alert objects
→ Workshop app
→ Automate notification/action





P0 PIPELINE



01 Create a local file named:

raw_events.csv

Paste this content into it:

event_id,entity_id,value,status,expected_status
E001,A,25,OK,OK
E002,A,140,OK,OK
E003,B,40,ERROR,OK
E004,B,75,OK,OK
E005,C,200,ERROR,OK
E006,C,10,OK,OK
E007,D,95,WARN,OK
E008,D,15,OK,OK

02 Create a new project 9_demo_3 https://ziptieai.usw-17.palantirfoundry.com/workspace/builder/create-pipeline

Create a new Pipeline Builder pipeline pipeline_anomaly3

Then in Pipeline Builder choose: Upload from your computer

03 Pipeline Builder: Add Foundry data (AIP)

Please guide me step by step in Pipeline Builder to:

  1. Add raw_events as input data.
  2. Create a new column named anomaly_reason using this logic:
    • if value > 100, anomaly_reason = HIGH_VALUE
    • else if status != expected_status, anomaly_reason = STATE_MISMATCH
    • else anomaly_reason = NORMAL
  3. Filter rows where anomaly_reason != NORMAL.
  4. Save the filtered result as a new dataset named flagged_anomalies.
  5. Verify that the output contains 4 rows: E002, E003, E005, and E007.

Please use the current Foundry UI names if possible.

05 After that, preview should show:

  • E002 → HIGH_VALUE
  • E003 → STATE_MISMATCH
  • E005 → HIGH_VALUE
  • E007 → STATE_MISMATCH
  • all others → NORMAL

And the anomaly labels are right:

E001 NORMAL E002 HIGH_VALUE E003 STATE_MISMATCH E004 NORMAL E005 HIGH_VALUE E006 NORMAL E007 STATE_MISMATCH E008 NORMAL 04 Next step: add a Filter rows transform:

anomaly_reason != NORMAL

Expected output after filtering:

4 rows
E002
E003
E005
E007

05 Then save/materialize that output as:

flagged_anomalies

You now have the expected output:

4 rows
E002 HIGH_VALUE
E003 STATE_MISMATCH
E005 HIGH_VALUE
E007 STATE_MISMATCH

06 deploy/build the output dataset The only remaining step is to deploy/build the output dataset.

07 view output

You should see a Dataset Preview page with the 4 anomaly rows.

Understand what “run” means here

Pipeline Builder is not a live app. It creates datasets.

Flow:

raw_events dataset
   ↓
pipeline logic
   ↓
flagged_anomalies dataset

When you deploy/build, Foundry writes the output dataset.

So the “use” is: open the output dataset and consume it downstream in analysis, Ontology, Workshop, or Automate.

so this is basic non-ai detection… very simple…..

  • input is hard wired (file)
  • simple logic used to select
  • output: you must manually open.

Yes — exactly.

This demo is the absolute simplest non-AI detection pattern:

fixed input dataset
   ↓
rule-based logic
   ↓
filtered output dataset
   ↓
manual inspection

Your summary is accurate:

  • Input: hard-wired file/dataset raw_events
  • Logic: deterministic rules
    • value > 100
    • status != expected_status
  • Output: flagged_anomalies
  • Use: manually open the output dataset to inspect results

This is not yet operational. It is just the foundational detection pipeline.

The next layers would be:

manual dataset output
→ dashboard/table
→ ontology alert objects
→ Workshop app
→ Automate notification/action

xxxx07 how do i implement: • Filter to only rows where anomaly_reason is not null

In that filter board, change the operator.

Use:

Keep rows where anomaly_reason is not null

What to set

  • Left dropdown: Keep
  • Column: anomaly_reason
  • Operator: choose one of:
    • is not null
    • is present
    • is not empty
    • is not missing

Then remove the value box if the UI allows it.

Do not use

is (with wildcards) NO

That is matching text, not checking nulls.

If there is no “is not null”

Use this equivalent:

anomaly_reason is not equal to null

or:

anomaly_reason is not empty

For your earlier version where normal rows are labeled NORMAL, use instead:

anomaly_reason is not equal to NORMAL

This is correct.

Your filter is working: only rows with a non-null / anomaly value remain.

Result:

4 rows
E002 HIGH_VALUE
E003 STATE_MISMATCH
E005 HIGH_VALUE
E007 STATE_MISMATCH

So this implements:

Filter to only rows where anomaly_reason is not null

or, equivalently for your demo:

keep only detected anomalies

08 (AIP) Contour (or Workshop) (NOT DO; text is from first demo) Before wiring up the full Ontology, you can do a quick sanity check by opening your anomaly_events dataset directly in Contour (Foundry’s chart and analysis tool). This lets you: • See a table of all rows

• Filter to only rows where anomaly_reason is not null

• Build a quick bar chart showing counts of HIGH_VALUE vs STATE_MISMATCH

i give up on this… the simplest things are sooooooooo complicated….

This step is optional but useful for validating your data before investing in the Ontology setup.



P1 ONTOLOGY

For a demo, here is exactly what to do on each screen — keep it simple and move fast.

Dialog 1 — Datasource Select Use existing datasource and search for anomaly_events (your pipeline output). Select it. 1 Click Next.

Dialog 2 — Metadata • Display name: Anomaly Event • API name: leave it as auto-generated • Everything else: leave as default 1 Click Next.

Dialog 3 — Properties (title set to event id) Your columns from anomaly_events will appear here already mapped. You do not need to configure anything manually. 1 Just confirm: • event_id is set as the primary key • event_id or entity_id is set as the title property Click Next.

Dialog 4 — Actions Leave this completely blank. Actions let users edit objects from a Workshop app — you do not need that for a read-only anomaly demo. 1

Click Next.

Dialog 5 — Save Location Pick any folder you have access to — ideally the same project folder where your anomaly_events dataset lives.

Click Create.

That is it. You now have a live Anomaly Event object type backed by your pipeline output. Come back and I will walk you through Workshop next. (DO WITH FDE)

SAVE THE ONTO ANOMALY EVENT 3 !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!





P2 UI APP (Workshop)

sorry, i mistyped… tell me only the next step.. not the whole process… i have a clean new workshop in front of me. firststep?

First step:

Add the Ontology object type to the Workshop app.

In the left panel, under Ontology types, click + and add:

Anomaly Event

Next step:

Rename this variable to make it clear.

Click the pencil next to:

Anomaly Event3

Rename it to:

All Anomaly Events

Do not add any filters to it. This variable should stay unfiltered.

Next step:

Create the filter-output variable.

  1. In the left Variables panel, click +.
  2. Choose variable type:
Object set filter
  1. Name it:
Selected Anomaly Reason Filter
  1. Leave default as:
No filters

Then save/create it.

Next step:

Rename Object set filter to Selected Anomaly Reason Filter.

Click the pencil next to:

Object set filter

and rename it:

Selected Anomaly Reason Filter

Leave:

Current value = No filters

Do not configure a default filter.

Next step:

Create the filtered object set variable.

  1. Click + in the Variables panel.
  2. Choose:
Object set
  1. Select object type:
Anomaly Event
  1. Name it:
Filtered Anomaly Events
  1. In its definition, add filter:
Using a variable
  1. Select:
Selected Anomaly Reason Filter

Choose:

Object set definition

That is the correct option.

Then continue:

  • Object type: Anomaly Event
  • Name: Filtered Anomaly Events
  • Add filter: Using a variable
  • Variable: Selected Anomaly Reason Filter

you are going to fast ..

You’re right. One step only.

Now rename the new variable:

Anomaly Event3

to:

Filtered Anomaly Events

Click the pencil next to Anomaly Event3, rename it, and stop there.

Next step:

In the Filtered Anomaly Events definition, click:

Using a variable

under Filter…

Then select:

Selected Anomaly Reason Filter

Good. Stop there.

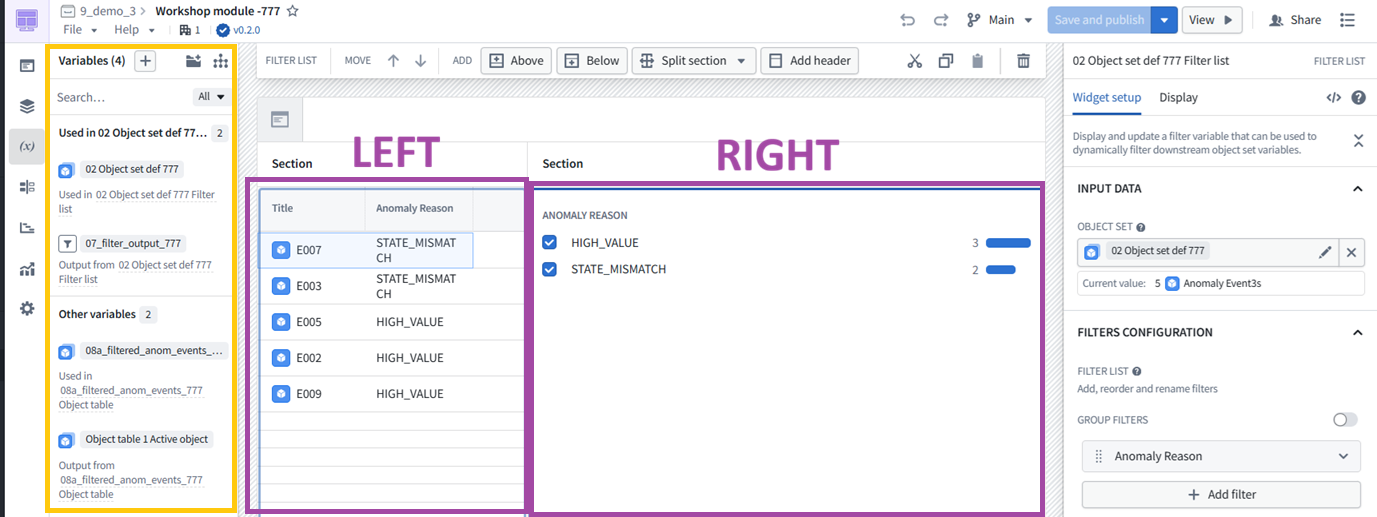

Next step:

Add the right-side filter widget.

  1. Click the right empty section.
  2. Click Add widget.
  3. Choose:
Filter list

Do not configure it yet; just add the widget.

Set Object set to:

All Anomaly Events

That is the unfiltered source for the filter list.

Next step:

In the right panel under OUTPUT DATA, change:

Filter list 1 Filter output

to your variable:

Selected Anomaly Reason Filter

Click the pencil/edit icon next to Filter output, select Selected Anomaly Reason Filter, and stop there.

Next step:

In the right panel, under FILTERS CONFIGURATION, click:

+ Add filter

Then choose the property:

Anomaly Reason

Stop after adding that filter.

Good. Next step:

Add the left object table widget.

  1. Click the left empty section.
  2. Click Add widget.
  3. Choose:
Object Table
  1. For its input object set, select:
Filtered Anomaly Events

Stop after the table is added and using Filtered Anomaly Events.

Next step:

Add the Anomaly Reason column to the object table.

In the right panel under Column configuration:

  1. Click:
+ Add column
  1. Choose:
Anomaly Reason

Leave Title as-is for now.

Stop after the table shows two columns:

Title
Anomaly Reason

Next step:

Test the filter behavior.

Click the checkbox for:

HIGH_VALUE

Expected result:

  • Left table shows only HIGH_VALUE rows.
  • Right filter list still shows both:
    • HIGH_VALUE
    • STATE_MISMATCH

If that happens, the wiring is correct.

The filter list is working, but the table is not using the same filter variable.

In your earlier screenshots there were likely two similar variables:

Selected Anomaly Reason Filter
Selected Anomaly Reason Filter1

Your filter widget is probably outputting to one, while Filtered Anomaly Events is using the other.

Next step

Open the variable:

Filtered Anomaly Events

In its definition, check the Using a variable field.

Set it to the exact same variable shown in the filter widget’s Output Data.

From your recent setup, that is probably:

Selected Anomaly Reason Filter1

So the wiring must be:

Filter widget output = Selected Anomaly Reason Filter1
Filtered Anomaly Events uses = Selected Anomaly Reason Filter1
Object table input = Filtered Anomaly Events

Right now the table is still showing all rows because those two filter variables do not match.

BINGO ******************

your last response i did not read. i mistakenly pressed return. its now apparently working. awesome assistance.

FDE2 now can you sumarize (step by step, numbered steps, and with all details

One-line summary The filter widget must read from the unfiltered object set, output selected filter criteria, and the table must read from a separate object set that applies those criteria.

Below is the clean step-by-step summary for the Workshop filter + table setup.

Workshop setup: Filter Anomaly Events by Anomaly Reason

Goal

Create a Workshop app where:

Right widget = filter by Anomaly Reason
Left widget = object table showing matching Anomaly Events

Expected behavior:

  • Before selecting a filter, the table shows all anomaly events.
  • If user selects HIGH_VALUE, the table shows only HIGH_VALUE rows.
  • If user selects STATE_MISMATCH, the table shows only STATE_MISMATCH rows.
  • The filter widget itself must still show both choices.

1. Add Ontology object type

In Workshop, add the Ontology object type:

Anomaly Event

This is the object type created from the flagged_anomalies dataset.

Important properties:

Event Id
Anomaly Reason
Entity Id
Value
Status
Expected Status

Event Id is also configured as the object title.

2. Create variable: All Anomaly Events

Create an Object set variable.

Name:

All Anomaly Events

Definition:

Object type = Anomaly Event
No filters

Purpose:

This is the complete unfiltered set of anomaly objects.

This variable is used by the filter widget.

Do not apply the selected filter to this variable.

3. Create variable: Selected Anomaly Reason Filter

Create an Object set filter variable.

Name:

Selected Anomaly Reason Filter

or if Workshop auto-renames it:

Selected Anomaly Reason Filter1

Default value:

No filters

Purpose:

This variable stores the filter condition selected by the user.

Important:

This is not the filtered data.
This is only the selected filter criteria.

Example:

If user selects HIGH_VALUE, this variable represents:

Anomaly Reason = HIGH_VALUE

4. Create variable: Filtered Anomaly Events

Create another Object set variable.

Name:

Filtered Anomaly Events

Definition:

Object type = Anomaly Event

Then add filter:

Using a variable = Selected Anomaly Reason Filter

or, if the actual variable name has 1:

Using a variable = Selected Anomaly Reason Filter1

Purpose:

This object set applies the selected filter criteria and produces the rows the table should show.

5. Add right widget: Filter List

Add a Filter List widget to the right section.

Configure:

Input data

Object set = All Anomaly Events

This is critical.

The filter widget must use the unfiltered object set so it can always show all possible filter values.

Filter configuration

Add filter:

Property = Anomaly Reason

Recommended display:

Filter component = Histogram
Sort by = Count
Show histogram bars = On

This produces filter options like:

HIGH_VALUE
STATE_MISMATCH

Output data

Set filter output to:

Selected Anomaly Reason Filter

or:

Selected Anomaly Reason Filter1

Purpose:

The filter widget writes the user’s selected criteria into this variable.

6. Add left widget: Object Table

Add an Object Table widget to the left section.

Configure:

Input data

Object set = Filtered Anomaly Events

This is critical.

The table should not use All Anomaly Events; it should use the filtered object set.

Column configuration

Add columns:

Title
Anomaly Reason

Optional clearer setup:

Event Id
Anomaly Reason
Value
Status
Expected Status

Note:

Title = Event Id

because Event Id was configured as the object title in Ontology Manager.

7. Selection setting

For this simple demo, selection is optional.

If you do not need row-click behavior, you can turn off:

Enable active selection

Selection is only needed if clicking a row should drive something else, such as:

detail panel
action button
related object display
open object view

8. Correct wiring

The final wiring should be:

All Anomaly Events
        ↓
Filter List widget
        ↓
Selected Anomaly Reason Filter
        ↓
Filtered Anomaly Events
        ↓
Object Table

Or with the auto-generated name:

All Anomaly Events
        ↓
Filter List widget
        ↓
Selected Anomaly Reason Filter1
        ↓
Filtered Anomaly Events
        ↓
Object Table

9. Verification

No filter selected

Expected:

Filter list shows:
HIGH_VALUE
STATE_MISMATCH

Object table shows:
all anomaly events

Select HIGH_VALUE

Expected:

Filter list still shows:
HIGH_VALUE
STATE_MISMATCH

Object table shows only:
HIGH_VALUE rows

Select STATE_MISMATCH

Expected:

Filter list still shows:
HIGH_VALUE
STATE_MISMATCH

Object table shows only:
STATE_MISMATCH rows

10. Main mistake to avoid

Do not connect the filter widget to:

Filtered Anomaly Events

If you do that, the filter widget filters itself.

Bad wiring:

Filtered Anomaly Events
        ↓
Filter List
        ↓
Selected filter
        ↓
Filtered Anomaly Events

That causes the problem you saw:

selecting HIGH_VALUE makes STATE_MISMATCH disappear from the filter widget.

Correct wiring:

Filter widget input = All Anomaly Events
Table input = Filtered Anomaly Events

One-line summary

The filter widget must read from the unfiltered object set, output selected filter criteria, and the table must read from a separate object set that applies those criteria.





P3 NOTIFICATION

AIP Automate (ERROR2………………….)

this is from AIP … i dont undersatnd…. can you help. see dialog attached

Step 5 — Automate Notification / Action This is the most powerful step. Automate lets you trigger reactions automatically when Ontology objects change — for example, sending a notification whenever a new Anomaly Event object is created (i.e., when your pipeline detects a new anomaly). 3 You can set this up directly from Ontology Manager: Open your Anomaly Event object type in Ontology Manager.

https://ziptieai.usw-17.palantirfoundry.com/workspace/ontology/object-type/dhjc7x0c.id-692d0a8e-b2a7-e830-df32-64b9eba2d1f3/overview

Select the Automations tab. Select Add automation.

Set the trigger to: “When a new object of type Anomaly Event is created.” Set the effect to: send a notification (email or in-platform alert) to the relevant team. You can also add an Action type so that analysts can manually mark an anomaly as “reviewed” or “resolved” directly from the Workshop app — closing the loop from detection to human decision.

(FDE) You are in the right place.

This screen means:

“Trigger automation when new Anomaly Event objects enter this monitored set.”

Since your object type only contains anomalies, this is effectively:

When a new Anomaly Event appears → do something

What to do on this screen

Leave this as:

Trigger: Objects added to set
Object type: Anomaly Event
Filters: none
Evaluation frequency: Live monitoring

That means it monitors all Anomaly Event objects.

Then go to the left sidebar and click: Effects


There you choose what happens, e.g.:

```text
Send notification

Important caveat

This only triggers when new objects are added after the automation is active.

Your existing 4 anomaly objects may not trigger a notification because they already exist.

To test later, you would need to add/build a new anomaly row, e.g. E009, then rerun the pipeline so a new Anomaly Event appears.

Summary

Current screen is fine. Next step:

Effects → add notification

plain notification

Set it like this for the simplest demo:

Object grouping

Choose:

Single execution

This sends one notification for all new anomalies detected together.

Recipients

In Add recipients, add yourself:

terry taylor

or your user/email if searchable.

Content

Use Plain notification.

Heading:

New anomaly event detected

Message:

One or more new anomaly events were added to the monitored set. Open the Anomaly Event app or dataset to review them.

Optional: skip URL link, advanced email, attachments.

Then go to:

Settings

and give the automation a name like:

Notify on new anomaly events

For this simple demo, you can leave Settings mostly as-is.

Recommended:

  • Enable event retries: leave off
  • Automation administrators: leave blank
  • Automation information notifications: leave default
  • Effect failure notifications: leave default
  • Auto-mute this automation: leave on

Then go to:

Summary

Review it, then create/save the automation.

Only change settings later if you need reliability/admin behavior.

Use this simpler name:

notify_on_new_anomaly_events

Leave the location as:

9_model_2

Leave security as:

User scoped security

That is required because the warning says:

Notification effects are not supported in project scope.

Leave:

Generate shared history events = off
Provide client credentials = None

Then click:

Save

https://ziptieai.usw-17.palantirfoundry.com/workspace/object-monitoring/automation/ri.object-sentinel.main.monitor.edc176a2-bd61-4583-99a0-c629ac46d8d6/main/view/overview

now do what … edited the input file?

xxxxxYes — to test the automation, add a new anomaly to the input data and rerun the pipeline.

Test row to add

Add this row to raw_events:

E009,E,180,OK,OK

This should produce:

anomaly_reason = HIGH_VALUE

Then run

  1. Update/upload/edit raw_events with the new row.
  2. Re-deploy/build the pipeline.
  3. Confirm flagged_anomalies now has 5 rows.
  4. Wait about a minute.
  5. Check notifications.

Important: existing E002/E003/E005/E007 probably will not trigger because they existed before the automation. Only new object E009 should trigger.

xxxxso i edit the file on my disk, then upload to palantir (and overwrite?)

Yes — for this simple demo:

  1. Edit your local raw_events.csv.
  2. Add:
E009,E,180,OK,OK
  1. Upload it again to Foundry as raw_events.
  2. Overwrite/replace the existing dataset if prompted.
  3. Re-run/deploy the pipeline.
  4. Check flagged_anomalies.

Expected:

5 rows
E009 included as HIGH_VALUE

Then the automation should detect the new Anomaly Event object after the ontology updates.

xxi can not overwrite the csv…. i guess i must delete it first… then upload .. will this still work?

It can work, but deleting/recreating may break lineage or create a new dataset resource. Better if possible:

Preferred

Open raw_events dataset → All actions / Upload new version / Replace data.

If that option exists, use it.

If you must delete

Yes, but then:

  1. Delete old raw_events.
  2. Upload new raw_events.csv.
  3. Make sure the new dataset has the exact same name/path:
/ziptieai-5313a6/9_model_2/raw_events
  1. Reopen Pipeline Builder.
  2. If the input node is broken, reselect the new raw_events.
  3. Deploy/build the pipeline again.

Caveat for automation test

If deleting/recreating causes the Ontology object type or pipeline output to fully refresh, Automate may treat objects differently. For this simple test, it should still be okay if E009 appears as a new Anomaly Event.

But the cleanest test is replace data without deleting the dataset resource.

xxthere is no upload new version… i already looked for it earrlier Then use the simplest safe workaround:

Create a new input dataset

  1. Create a new CSV locally:
raw_events_v2.csv

with the extra row:

E009,E,180,OK,OK
  1. Upload it to Foundry as:
raw_events_v2
  1. In Pipeline Builder, replace the input node:
raw_events → raw_events_v2
  1. Deploy the pipeline again.

But important

Your output object type may still be backed by:

flagged_anomalies

That is fine if the pipeline still writes to the same output dataset:

flagged_anomalies

Expected output:

5 rows
E009 HIGH_VALUE

This avoids deleting the old dataset and preserves the output/ontology side.

UPLOAD / REPLACE BY FILENAME (BINGO) 26.0724 everything in this system is so complicatec

i found this option.. which button

Use:

Replace by filename

Then click:

Import and validate

Why:

  • Your uploaded file has the same schema.
  • It updates the existing dataset without creating a totally new dataset.
  • This is best for testing the pipeline/automation.

Make sure the uploaded CSV filename matches the existing file name if required. If it fails because filename differs, use Replace instead.

E009,E,180,OK,OK

that worked… i used the Updated via / Import line

Good — now raw_events has 9 rows and includes:

E009,E,180,OK,OK

Next:

  1. Go back to the Pipeline Builder pipeline.

  2. Deploy/build it again.

  3. Open flagged_anomalies.

  4. Verify it has 5 rows and includes:

E009 HIGH_VALUE

refresh page

Then wait briefly and check whether the Automate notification fires.

how do i check the notificiaion?

Check the Notifications area in Foundry.

Where to look

In the left Foundry sidebar, click:

Notifications

It usually has a bell icon.

Also check:

Recent notifications

or the top-right bell/user notification area if present.

What to expect

After you redeploy the pipeline and E009 becomes a new Anomaly Event, you should see something like:

New anomaly event detected

or whatever heading you configured.

If nothing appears

Check these in order:

  1. Did you redeploy the pipeline after adding E009?
  2. Does flagged_anomalies now show 5 rows?
  3. Did the Ontology object type update to include 5 Anomaly Event objects?
  4. Is the automation enabled?
  5. Existing old anomalies will not notify; only new object additions should.
  6. Wait 1–2 minutes; live monitoring is not always instant.

It worked.

Evidence:

  • Notification appeared: “New anomaly event detected”
  • Automation history shows:
    • triggered by E009
    • status: All effects have completed
    • plain notification: Effect succeeded
  • Object Explorer shows E009 as an Anomaly Event
    • Anomaly Reason = HIGH_VALUE
    • Value = 180

So your full non-AI operational loop is now working:

update raw_events
→ rebuild pipeline
→ flagged_anomalies updates
→ Anomaly Event object E009 appears
→ Automate triggers
→ notification is sent
→ user can open the object


26.0725 (v1 26.0723)
